Inspect the assembly#
Select Explore in 3D to load the model. Drag to orbit; scroll to zoom. With the canvas focused, use arrow keys to orbit and + / − to zoom. The assembly slider separates parts for inspection.
Model status#

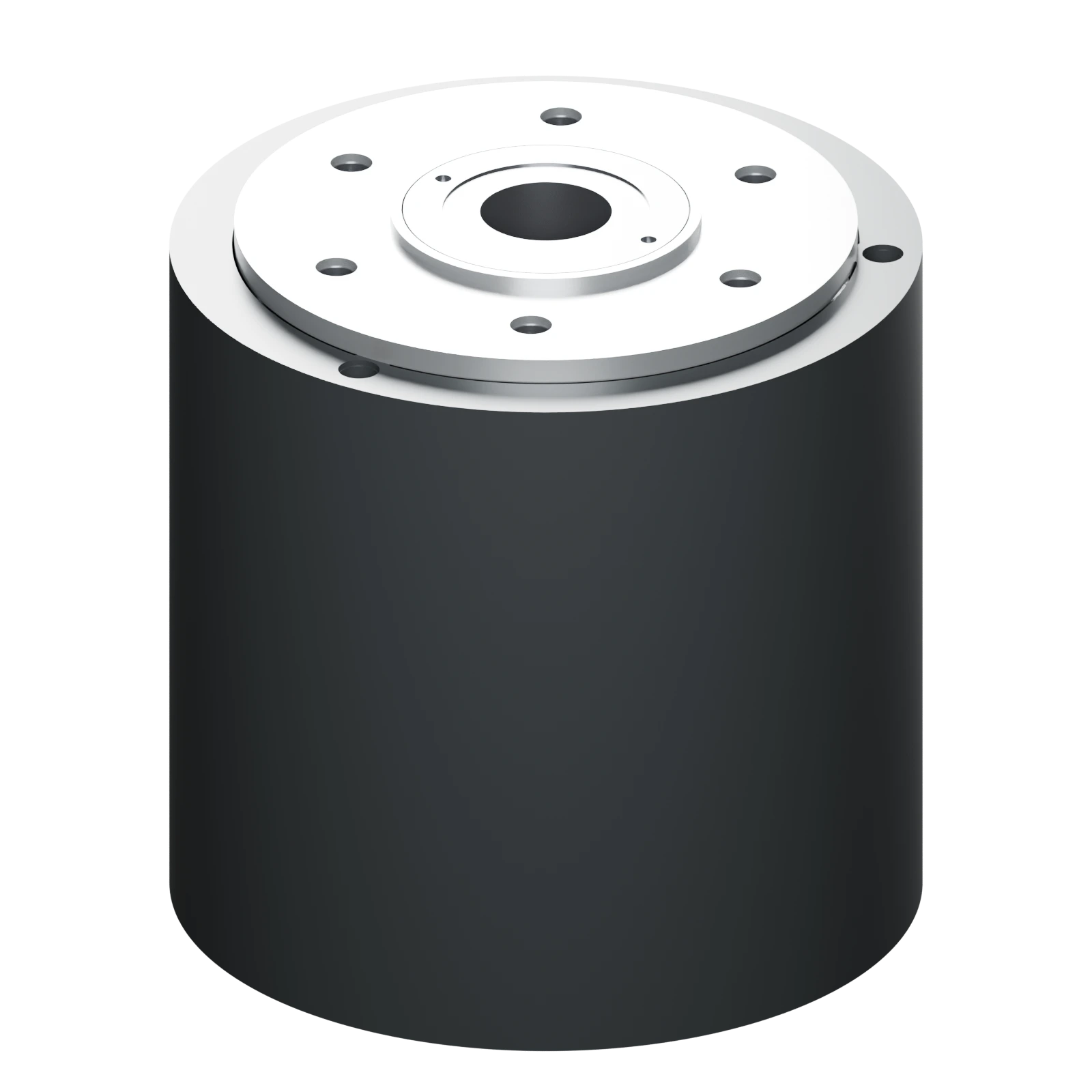

The model is a development visualization derived from the r3 native assembly. Exploded motion is illustrative. Geometry does not establish performance or manufacturing qualification.
Use engineering downloads for STEP geometry and interface datums.
